Determination of Refractive Index
Determination of Refractive Index
Refractive index, a fundamental concept in optics and material science, plays a pivotal role in understanding how light interacts with various substances. In this article, we will explore the concept of refractive index, its determination, and its significance in a wide range of applications.
Introduction
Refractive index, often denoted as “n,” is a fundamental property of transparent materials. It quantifies how light behaves when it enters a material and is crucial in the study of optics and the design of various optical devices.
Understanding Refractive Index
What is Refractive Index?
Refractive index is the ratio of the speed of light in a vacuum to the speed of light in a specific material. It is a dimensionless quantity that describes how much the direction of light changes when it passes from one medium into another.
The Role of Light
Light travels in straight lines through a vacuum but changes direction when it passes from one material to another. Understanding this change in direction is fundamental to the concept of refractive index.
Importance of Refractive Index
The refractive index of a material is a critical parameter with widespread applications. It affects the behavior of light in optical devices, such as lenses, prisms, and fiber optics, and has applications in various scientific fields, including chemistry and biology.
Methods to Determine Refractive Index
There are several methods for determining the refractive index of a material, each tailored to the specific needs of the experiment.
1. Snell’s Law
Snell’s Law, also known as the law of refraction, describes how light changes direction when it passes from one medium to another. It is a fundamental equation used to calculate refractive indices.
2. Abbe Refractometer

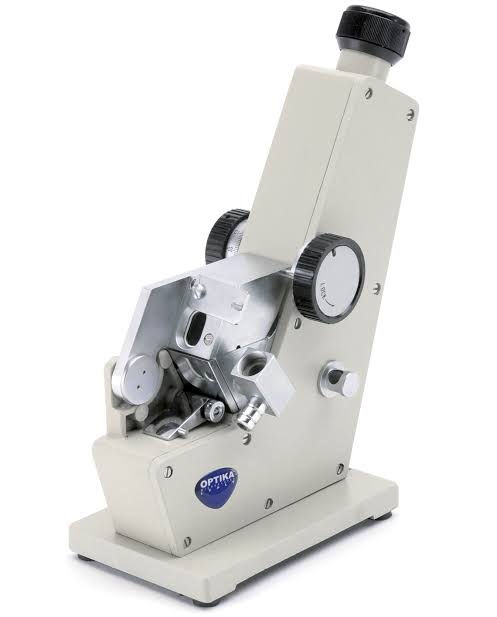

The Abbe refractometer is a common laboratory instrument used to measure the refractive index of liquids and solids. It works based on the principle of total internal reflection.
Procedure :
The refractive index (n) of a substance with reference to air is the ratio of the sine of the angle
of incidence to the sine of the angle of refraction of a beam of light passing from air into the substance.
It varies with the wavelength of the light used in its measurement.
Unless otherwise specified in the individual monograph, the refractive index, n20D Is measured at 200 ± 0.50 with reference to the wavelength of the D lineof sodium ( λ= 589.3 nm).
The temperature should be carefully adjusted and maintained since the refractive index varies significantly with temperature.
The Abbe refractometer is convenient for most measurements of refractive index but other refractometers of equal or greater accuracy may be used.
Commercial refractometers are normally constructed for use with white light but are calibrated to give the refractive index in terms of the D line of sodium.
The apparatus is provided with a water jacket to control the temperature of measurements.
The manufacturer’s instructions relating to a suitable light source should be followed subject to the directions given in the Pharmacopoeia.
To achieve accuracy, the apparatus, should calibrated against distilled water which has a refractive index of 1.3325 at 250 or against the reference liquids given in the following table
|
Reference Liquid |
N20D |
Temperature coefficient Δn/Δt |
|
Carbon tetrachloride |
1.4603 |
-0.00057 |
|
Toluene |
1.4969 |
-0.00056 |
|
α-Methylnaphthalene |
1.6176 |
-0.00048 |
The refractive index value for D line of sodium measured at 200
NOTE : The cleanliness of the instrument should be checked frequently by determining the refractive index of distilled water. Use 1 to 1.25 mm wall tubing for N.
3. Spectrophotometry
Spectrophotometry is a versatile method that employs the interaction between light and matter to determine the refractive index. It is commonly used in analytical chemistry and materials science.
Applications of Refractive Index
In pharmaceuticals, the refractive index is crucial for:
- Quality Control: Verifying the identity and purity of materials.
- Impurity Detection: Identifying and quantifying impurities.
- Formulation: Optimizing drug concentrations and dosage forms.
These applications ensure pharmaceutical safety and effectiveness.
Factors Affecting Refractive Index
Factors affecting refractive index include:
- Wavelength: Refractive index varies with the color or wavelength of light used.
- Temperature: Refractive index changes with temperature.
- Pressure: Pressure can alter the refractive index, especially at high pressures.
- Concentration: The concentration of solutes in a solution can affect the refractive index.
- Chemical Composition: Different materials have unique refractive indices.
Understanding these factors is crucial in various scientific and industrial applications.
Theoretical Aspects of Refractive Index
Dispersion
Dispersion is the phenomenon where the refractive index of a material varies with the wavelength of light. It is responsible for the formation of rainbows and is essential in the design of optical prisms.
Absolute Refractive Index
The absolute refractive index is the refractive index of a material with respect to a vacuum. It is a fundamental constant that characterizes the optical properties of the material.
Conclusion
In conclusion, the determination of refractive index is a critical aspect of optics and materials science. It has diverse applications, from designing optical instruments to understanding the behavior of light in various media.
Frequently Asked Questions (FAQs)
Q1: What happens when light passes from a medium with a lower refractive index to a medium with a higher refractive index?
When light passes from a medium with a lower refractive index to a medium with a higher refractive index, it bends toward the normal, i.e., it changes direction and slows down.
Q2: How is refractive index related to the critical angle?
The critical angle is the angle of incidence at which light is refracted along the surface of a material. It is related to the refractive index of the material and is used in total internal reflection.
Q3: Can the refractive index of a material change with temperature?
Yes, the refractive index of most materials changes with temperature. This property is important in applications like temperature measurement and compensation in optical devices.
Q4: Why is the dispersion of light in a prism a result of varying refractive indices?
Dispersion occurs because the refractive index of a material changes with the wavelength of light. Different wavelengths experience different angles of refraction, leading to the separation of colors in a prism.
Q5: How is the refractive index used in gemology?
In gemology, the refractive index is used to identify and assess the quality of gemstones. It helps differentiate between different types of gemstones based on their optical properties.
