Filter leaf

Principle

• It is an apparatus consisting
of a longitudinal drainage screen covered with a filter cloth

• The mechanism is surface
filtration and acts as sieve or strainer

• Vacuum or pressure can be
applied to increase the rate of filtration

Construction

• The leaf filter is consisting
of a frame enclosing a drainage screen or grooved plate

• The frame may be any shape
circular, square or rectangular

• The whole unite being covered
with filter cloth

• The outlet for the filtrate
connects to the inside of the frame through suction

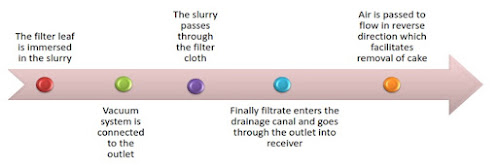

Filter leaf Diagram



Working and
uses

Use

Use  for  the
filtration  of  slurry
which do  not  contain
high  solid  content,
about  5%,  i.e. dilute suspensions

Advantages

• Simplest form of filter used for batch process

• A number of units can be connected in parallel to increase
the surface area of filtration

• Pressure
difference  can  be
obtained  either  with
vacuum  or  using
pressure  up  to
the  order  of  800
kilopascals

• Labour costs for operating the filter leaf are fairly
moderate

• The efficiency of washing is high

• The slurry can be filtered from any vessel

• The cake can be washed simply by immersing the filter in a
vessel of Water
