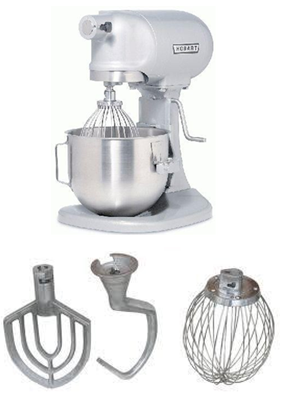

Planetary mixer – Pharmaceutical Engineering B. Pharm Third Semester PDF Notes



• Mechanism of mixing is shear

• Shear is applied between moving blade and stationary wall

• Mixing arm moves around its own axis and around the
central axis so that it reaches every spot of the vessel

• The plates in the blades are sloped so that powder makes
an upward movement to achieve tumbling action also


• Consists of vertical cylinder shell which can be removed

• The blade is mounted from the top of the bowl

• Mixing shaft is driven by planetary gear and it is
normally built with variable speed drive


• Break down agglomerates rapidly

• Low speeds are used for dry blending and fast for wet


• Speed of rotation can be varied at will

• More useful for wet granulation process


• Mechanical heat is buildup within the powder mix

• It requires high power

• It has limited size and is useful for batch work only
